Malt milling machine

Malt milling machine
The malt processing system includes machines and other equipment that is needed to prepare malt grains before starting the wort production in the brewhouse.

  • Product Detail

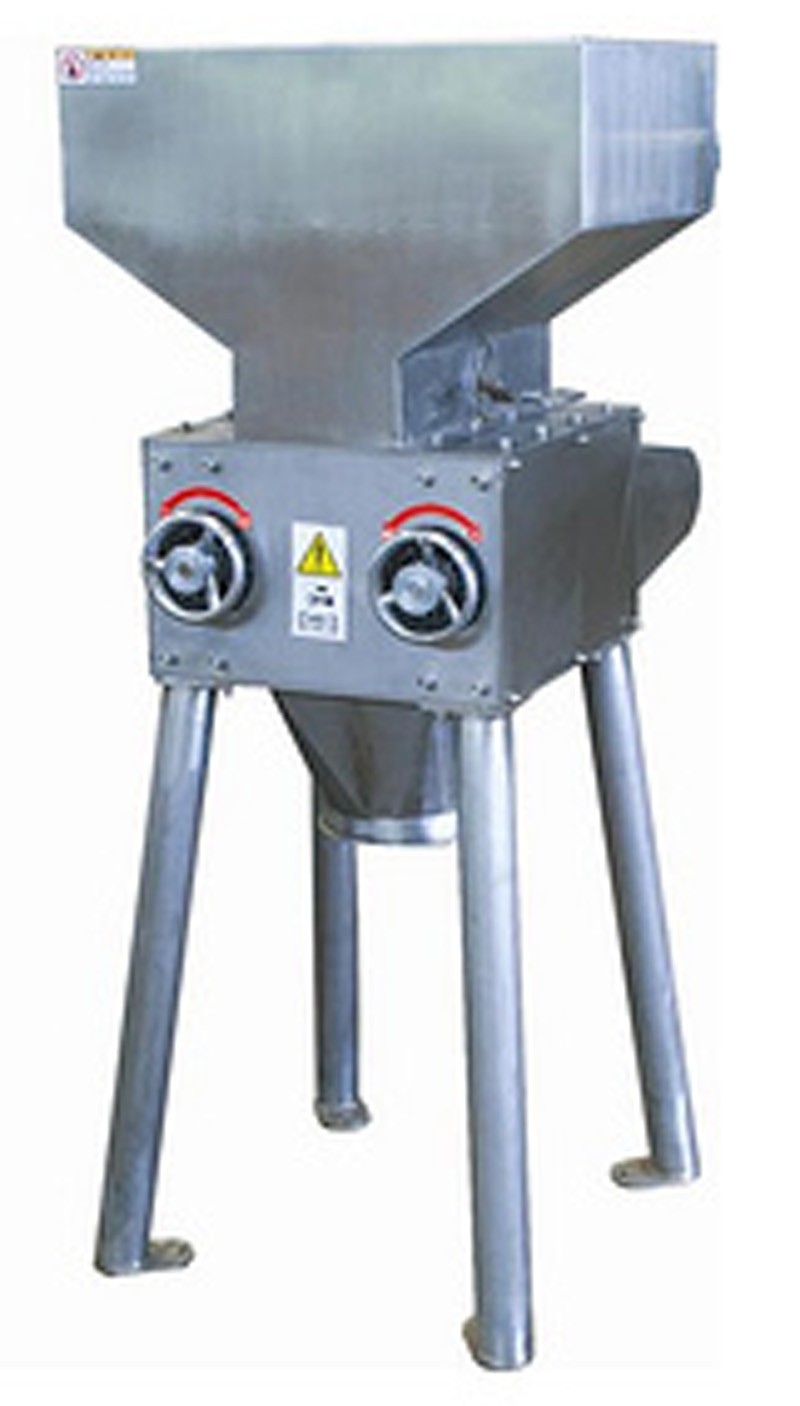

Malt milling machine

The malt processing system includes machines and other equipment that is needed to prepare malt grains

before starting the wort production in the brewhouse.


Main equipment of the malt processing system :
Malt grain mill machines – Machines for fine squeezing of malt grains to make the endosperm accessible without
damaging the outer parts of grain which serves like the wort filtering material.

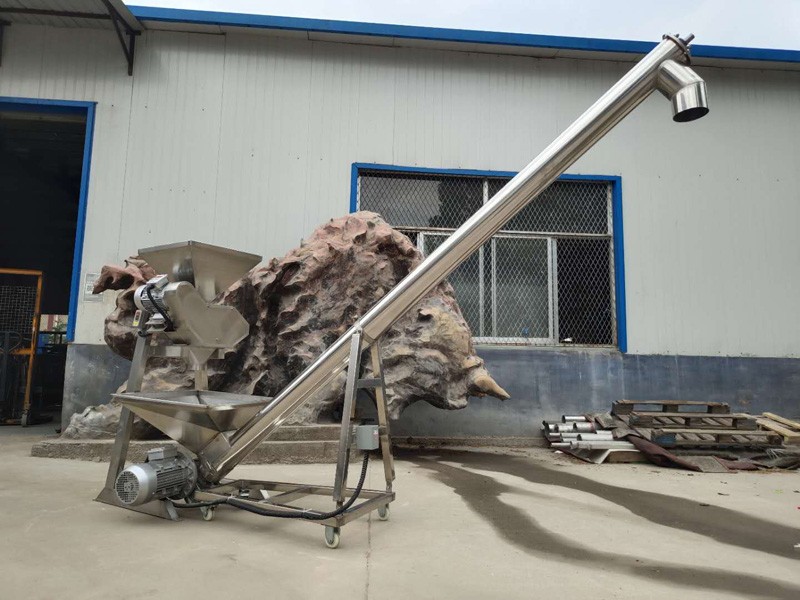

Screw conveyors – Machines for the transport of malt from the warehouse to the hopper of the malt crusher,
then to the brewhouse and for the transport rests of waste malt grains from the brewhouse to the storage waste containers.
Malt scales – Meters for accurate weighing of malt before its squeezing.
Hoppers and silos for the malt storage and other machinery and equipment for convenient malt storage and malt handling.

According to your brewery size, then we can provide you 100kg/h-3000kg/h. Also with flex auger, malt silo and accessories.
In addition, according to your automatic level, we can equip you weight model for counting the weight of malt and recipe.
So, pls contact us for getting more information.

The details as below: (500kg/h as sample)
1.Crushing Ability:300-500kg/h;
2.Power:1.5KW;
3.Shell: carbon steel or stainless steel.
4.Double rollers,material: Alloy
5.Rollers gap adjustable; Maxroller speed: 700RPM
6.Ratio of magnetic metal material: ≤0.003G/KG
7.Temperature of rollers afterrunning: ≤56°C.
9.New type double rollers malt miller, equipped with motor,belt pulley, belt, hopper,etc.

10.Automatically remove the iron and dust,Low noise.
