Fermentation System/

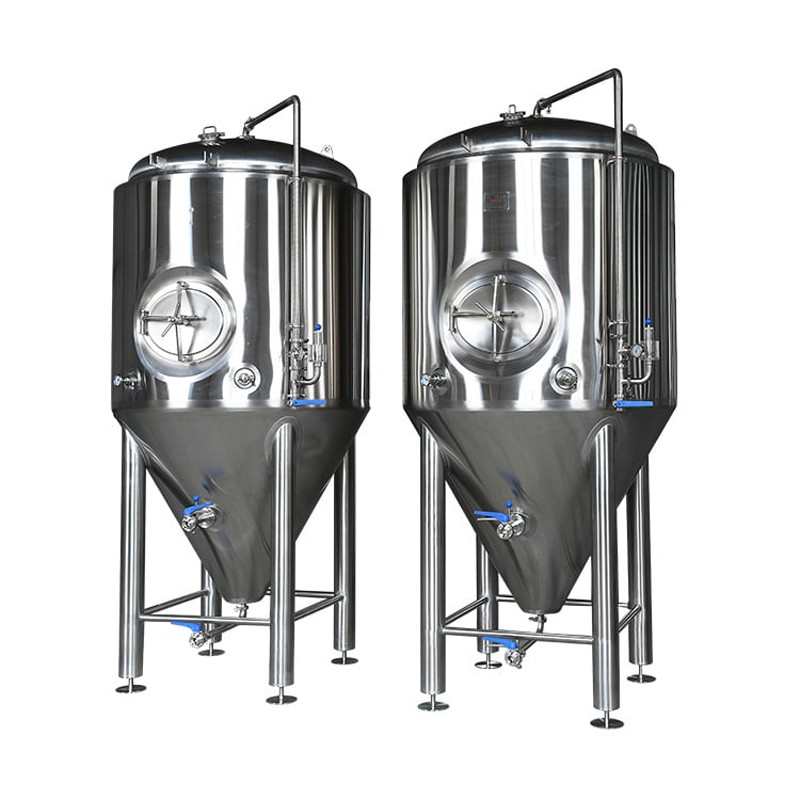

Single wall fermenter

  • Product Detail

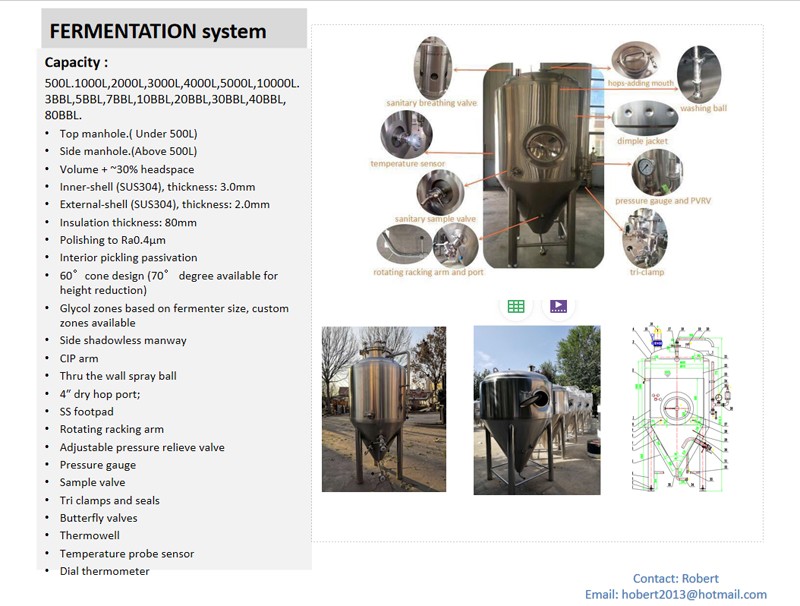

1.Brewery Fermentation system:
Single wall fermenter in cooling room. Function: beer fermenting and cooling.
Working Capacity: 300L,500L, 1000L, 2000L, 3000L, 5000L.
Inner Diameter: Requirement.
PU Insulation: 80-100mm
Outside Diameter: Requirement.
Thickness: Inner Shell: 3 mm, Dimple Jacket: 1.5 mm, Cladding: 2 mm

1.All AISI-304 Stainless Steel Construction
2.Jacketed & Insulated
3.Dual Zone Dimple Cooling Jacket
4.Dish Top & 60° Conical Bottom
5. Stainless Steel Legs with Leveling Ports
Fermenter Includes:
1.Top Manway or Side Shadow less Manway
2.Racking Port with Tri-Clover Butterfly Valve
3.Discharge Port with Tri-Clover Butterfly Valve
4.2 Tri-Clover Outlets with Butterfly Valves
5.CIP Arm and Spray Ball
6.Sample Valve
7.Shock proof Pressure Gauge
8.Safety Valve

III.Production Process
