Bright Beer System/

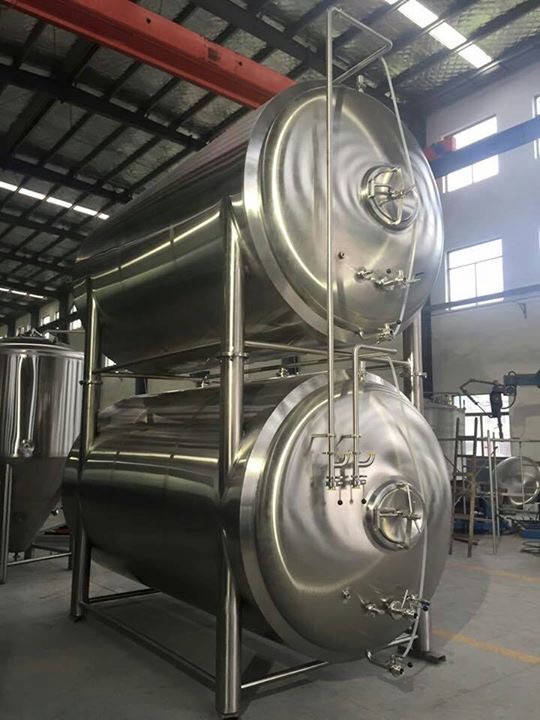

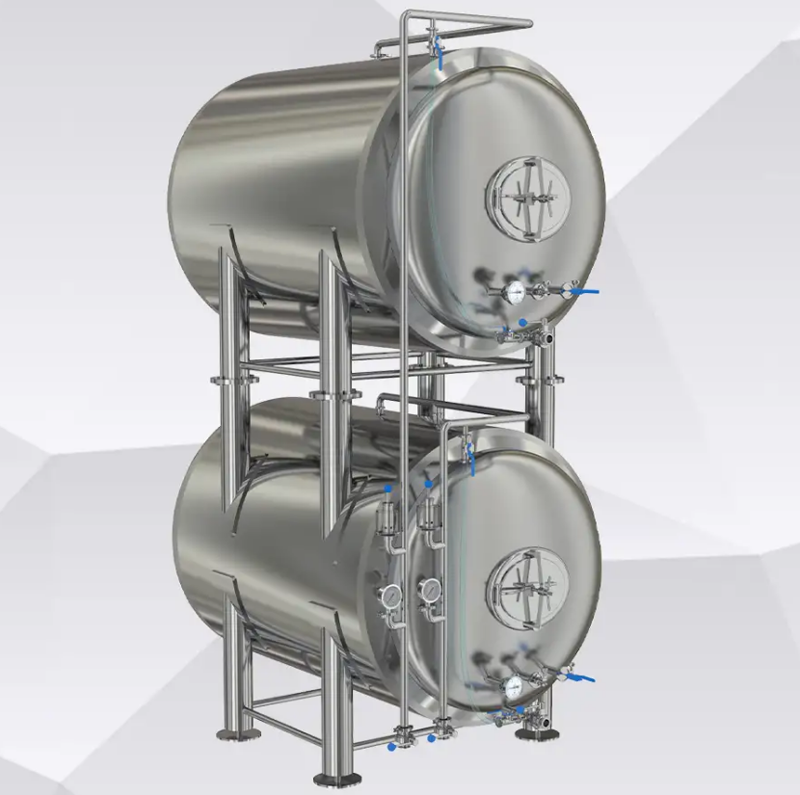

Horizontal Bright Beer Tank

Bright beer tanks, called also service tanks, tanks for finalized beverage, or BBT bright beer tanks.

The serving tanks with PUR insulation are cooled using water or glycol that circulates inside duplicators (cooling channels inside a double steel jacket).

Bright tanks must be engineered to be cold and hold pressure, sometimes act as BBT - Beer storage tanks,

cylindrical pressure beer tanks horizontal bright beer tank serving tank for microbreweryBBT, Bright Beer Tanks,

cylindrical pressure tanks, serving tanks, beer final conditioning tanks, beer storage tanks these are the most common terms.

Type: Double Layer Conical Tank, Single Wall Conical Tank.

Volume: 1HL-300HL, 1BBL-300BBL. (Support Customized).



  • Product Detail

Bright beer system

Specifications:
Working Capacity: 100L-3000L.
Inner Diameter: Requirement.
PU Insulation: 80-100mm
Outside Diameter: Requirement.
Thickness: Inner Shell: 3 mm, Dimple Jacket: 1.5 mm, Cladding: 2 mm
Detail:

1).Bright beer tank
Beer maturation/conditioning /serving/filtered beer receiving.
1.All AISI-304 Stainless Steel Construction
2.Jacketed & Insulated
3.Dual Zone Dimple Cooling Jacket
4.Dish Top & 140° Conical Bottom
5.Stainless Steel Legs with Leveling Ports
Bright beer tank Includes:
1.Top Manway or Side Shadow less Manway
2.Racking Port with Tri-Clover Butterfly Valve
3.Discharge Port with Tri-Clover Butterfly Valve
4.2 Tri-Clover Outlets with Butterfly Valves
5.CIP Arm and Spray Ball
6.Sample Valve
7.Shock proof Pressure Gauge
8.Safety Valve
9.Thermowell
10.Level sight

11.Carbonation stone


III.Production Process
