1.Safety: All tank fabrication procedures follow a strict quality control program.
2.Flexibility: Design and customize equipment to meet individual customer’s site and capacity requirements.
3.Easy to installation and use: Fast installation due to precision pre-fitted piping at factory and quick on-site reassembly time.
4.Durablity:High-quality selection of accessores equipment for improved long-term system performance and low maintenance costs.
5.Warranty:Industry-leading 5 year warranty on all fabricated vessels for long-term hassle-free operation.
6.Perfect pre-sales and after-sales service, provide 3D sketch, CAD layout, installation assitance, assembly and training.

  • Product Detail

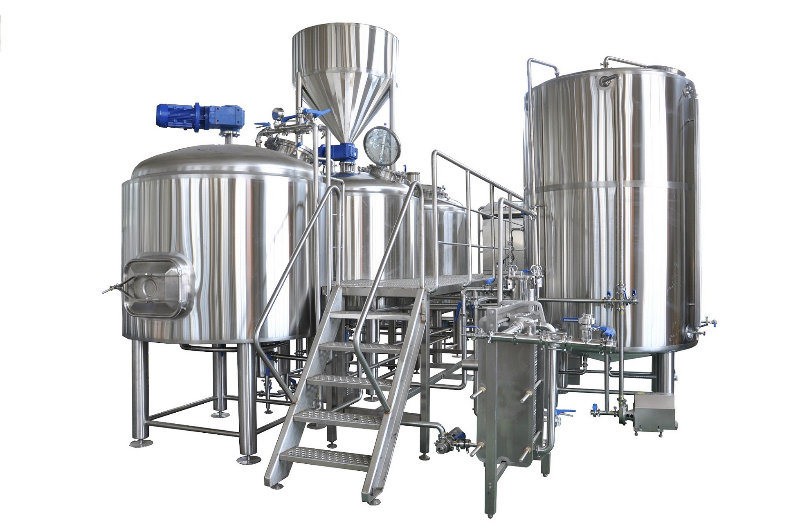

II.Product detail: commercial beer brewery equipment.
Standard Configurations:
1.Brewhouse Capacity: 1000L-5000L commercial beer brewing equipment
2.Materials: SUS 304 or 316 Stainless Steel; Thickness: inner 3mm, outer 2mm, jacket is 1.5mm.
3.Interior Finish: Acid washing and passivation or mirror polishing, 0.2~0.4μm.
4.Manhole, top pressure glass manhole with LED sight.
5.Temperature measurement method: PT100 temperature probe.
6.Cleaning method: 360°Fixed rotate cleaning ball.
7.Heating system: steam heating, electrci element, direct fire.

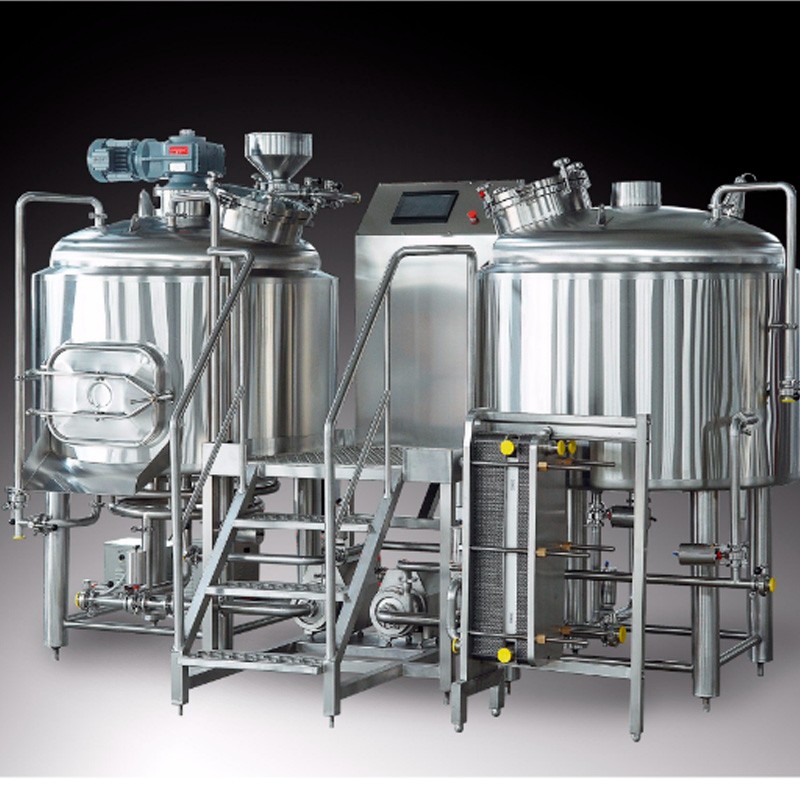

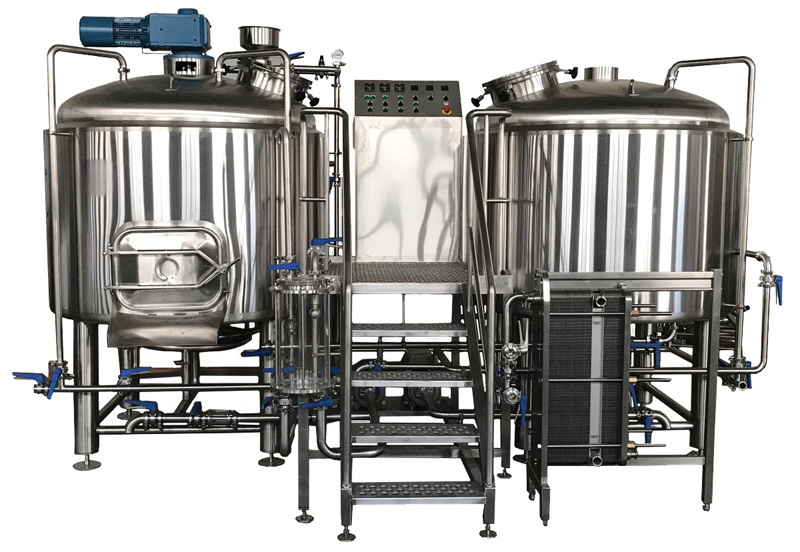

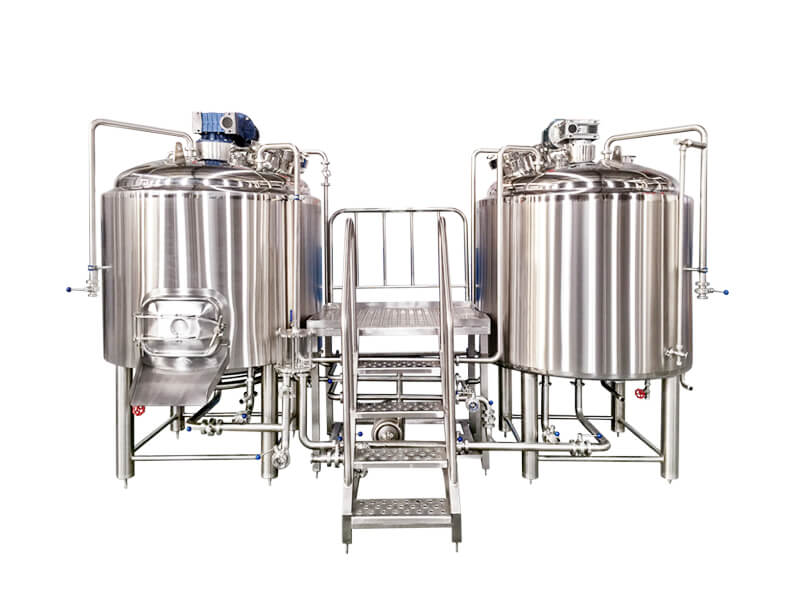

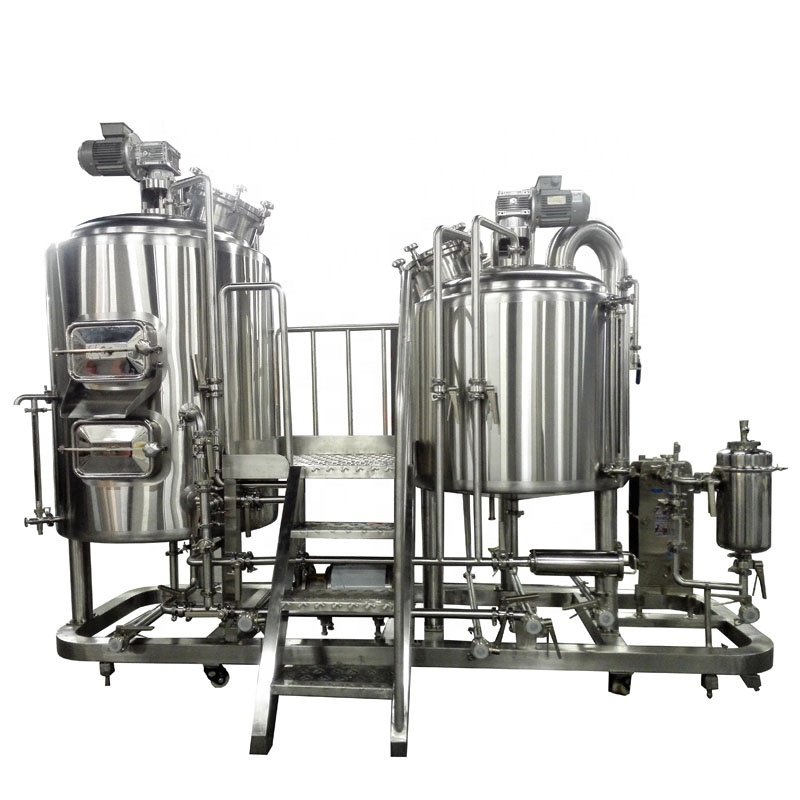

1. Combined 2 vessel Brewhouse System, Volume: 200L-1000L, 2BBL-10BBL.
 1* Mash Tun/ Lauter Tank
 1* Brew Kettle/Whirlpool Tun

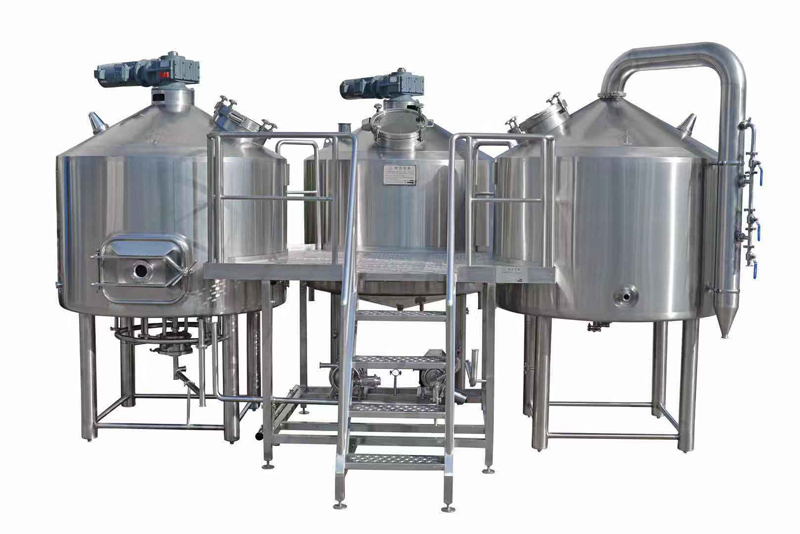

2.Combination 3 vessel Brewhouse, 100L-1000L, 1-10BBL.
2.1(Germany Type)
1*Mash&Brew kettle.
1*Lauter Tun on top/Whirlpool at bottom.

2.2(America type)
1*Lauter tank on top&Hot water tank at bottom.

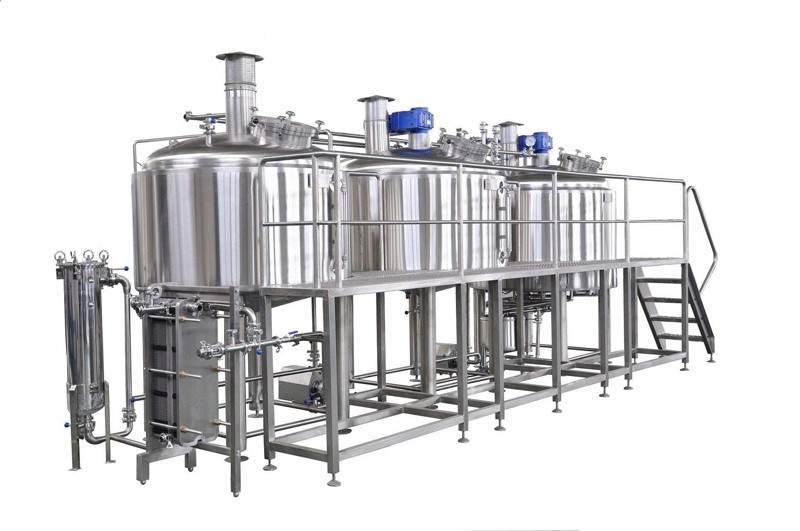

3.Separated 3 Vessel Brewhouse, 500L-5000L, 5BBL-50BBL.
3.1(Germany type)
1*Mash tun.
1*Lauter Tun.
1*Brew kettle/Whirlpool.

3.2(America type)
1*Mash tun/Lauter tank .
1*Brew kettle.

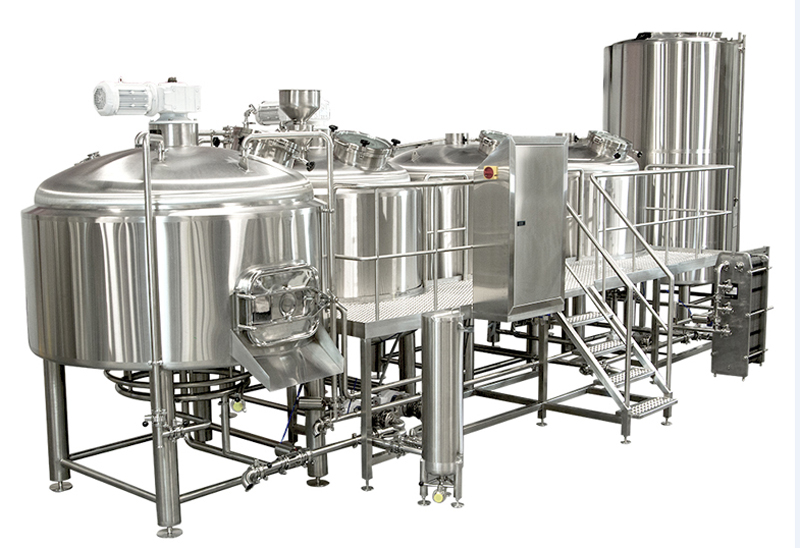

4.Combination 4 vessel Brewing system, 1000-5000L, 10BBL-50BBL.
1*Mash tun.
1*Lauter Tun.
1*Brew kettle

5.Customized Brewhouse
1*Lauter tank
