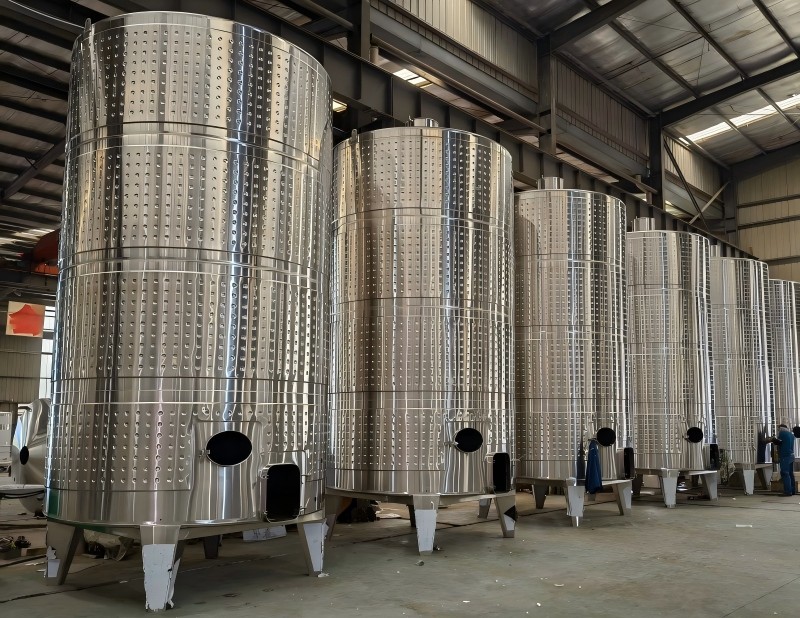

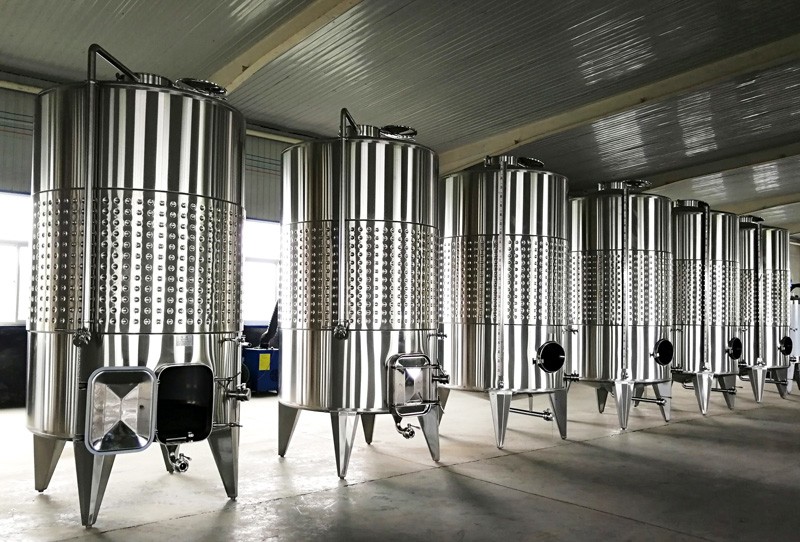

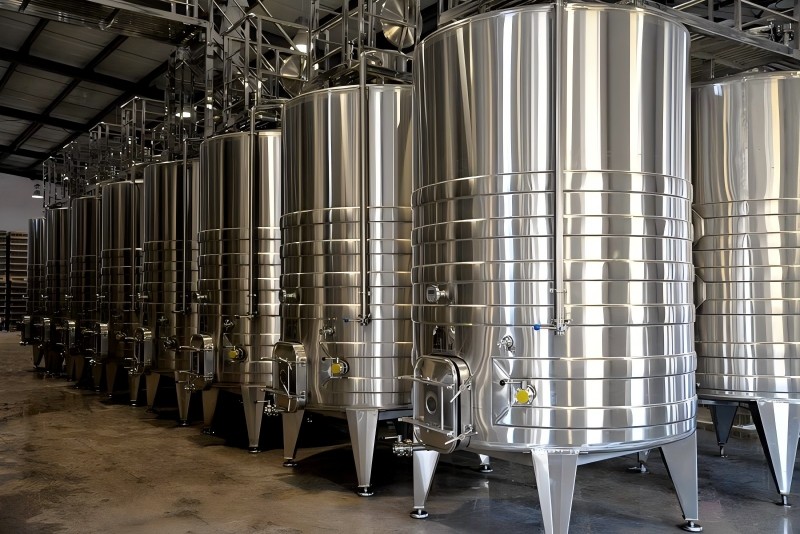

Wine Fermentation/Storage Tank



Volume:500L-30000L (Customize support)
Material: SS304 or SS316

Wine fermentation and storage tanks are made of stainles steel 304 material, can also be used for wine storing, normally it should be with cooling jacket or cooling coil plate.
Wine fermentation and storage is mainly divided into two stages: main fermentation and post fermentation. In the main fermentation stage, under the action of yeast, the sugar in grapes is converted into alcohol and carbon dioxide. This process usually lasts for about 7 days, during which it is necessary to control the appropriate temperature to avoid the growth of miscellaneous bacteria and yeast inactivation. Post fermentation is a slow process that further converts alcohol, typically lasting 20 to 30 days.
Fermentation and storage tanks temperature control. The wine fermentation tanks will be with cooling jacket or cooling coil for cooling so that the tanks container can be automatic temperature controlled, cause excessive temperature may lead to yeast inactivation, so moderate control is necessary.
The wine fermentation tanks also are designed with slopping flat bottom so that the draingae can be easier to remove it out.

 Dimension of wine fermentation and storage tanks

Capacity(Liter)	Diameter(mm)	Total Height(mm)
1000L	1100	2200
1500L	1300	2200
2000L	1300	2550
3000L	1600	2550
5000L	1900	3000
6000L	1770	3500
7500L	2000	3500
8000L	2050	3500
10000L	2100	4000
12500L	2100	4900
15000L	2150	5500
20000L	2250	5950

 Detailed specification list

Name	Specification l ist
wine fermentation and storage tanks	1. Stainless steel 304 2. plate thickness: 2.5mm, 3. Conical centric top 4. Sample valve 5. CIP – rotary spray ball 6. Wine outlet and drain outlet assembly 7. Fully welded cladding 8. Top Manhole Cover 9. Side rectangular manway 10. with cooling jacket, 11. RTD Probe 12. 2″ Butterfly valves 13. Slopping flat bottom 14. 2″ PVRV 15. Ladder Rack 16. Bimetallic thermometer
