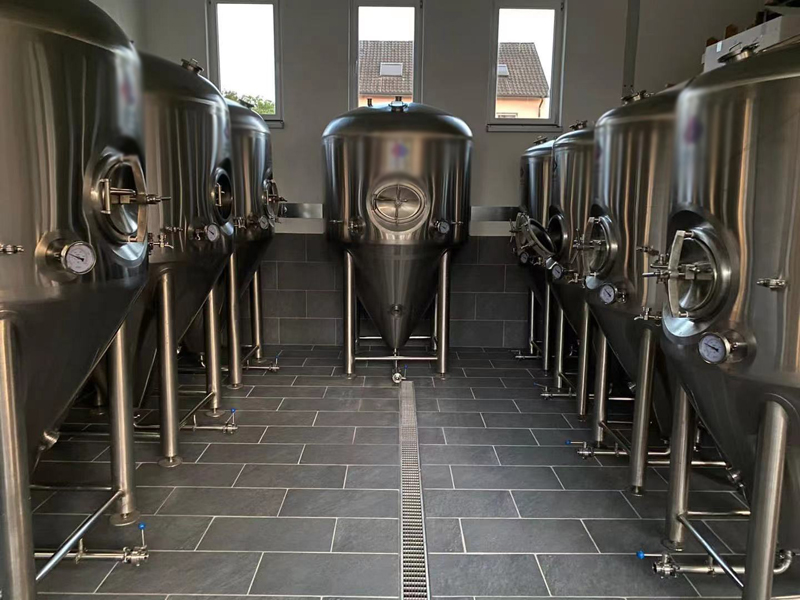

Germany 1200L Isolated Head Jackted Conical Fermenter

Congratulations to our Germany customers, Last month they received the tanks.
Glad to get the feedback from them, and give us a high reputation by our tanks.

Sincerely hope that we can work together in the future and help them to grow up.
Also if someone want to confirm our equipment and service, then you can ask us and we send you the contact information to confirm that.

Here it’s our details of 600L and 1200L double head isolation fermenters.
Function:Wort Fermentation or maturation
1.600L: Total volume:800L(25% free space), Effective volume:600L, double dish head and cylinder tank with four legs;
2.1200L: Total volume: 1600L(25% free space), Effective volume:1200L, double dish head and cylinder tank with four legs;
3.2.Inside surface: SS304, TH:3mm,
Outside surface: SUS304, TH:2mm,
Thermal insulation material: Polyurethane (PU) foam, Insulation thickness: 80MM.
3.Manhole: side manhole on cylinder.
4.Design pressure 3bar, Working pressure: 1.5-2.0bar;
5.Bottom design: 60 degree cone for easy to exist yeast.
6.Cooling method: Dimple cooling jacket, Cooling area:2.4㎡. (600L tank is 1.2㎡)
7.Cleaning system: Fixed-round rotary cleaning ball.
8.Control system: PT100, temperature control;
9.Dry hops adding device on the top.
10.Automatic pressure control with technical pressure regulating valve.
11.With: CIP arm with spray ball, Thermometer on tank, pressure gauge, sanitary sampling valve, breath valve, Ice water solenoid valve, drain valve, etc.
12.Stainless steel legs with bigger and thicker base plate, with screw assembly to adjust leg height;

13.Complete with associated valves and fittings.
